Understanding how two-camera computer vision creates more accurate 3D motion analysis for golfers.
Every Golfer Can Record a Swing. But Can One Camera Capture Everything?
Walk onto almost any driving range today and you’ll see golfers recording their swings with a smartphone. Video has become one of the most accessible tools for improving performance, allowing players to review their technique from almost anywhere.
Modern artificial intelligence has made these videos even more valuable. AI can detect body joints, estimate posture, identify swing positions, and even measure certain aspects of movement from a single recording.
But there’s an important limitation that often goes unnoticed.
While one camera can capture what a swing looks like, it cannot directly measure how the body and golf club move through three-dimensional space.
This raises an important question:
Can a single camera provide true 3D golf swing analysis?
To answer that, we first need to understand how cameras actually see the world.
Cameras Capture Images in Two Dimensions
Although the world around us is three-dimensional, every standard camera records it as a flat, two-dimensional image.
When depth is projected onto a flat image, important spatial information is lost.
Imagine placing two golf balls directly in line with your camera. Even if one ball is much farther away, both may appear almost perfectly aligned in the image. From that single viewpoint, the camera cannot determine which ball is closer or farther.
This same challenge exists when analyzing a golf swing.
Every movement of the hands, club, shoulders, hips, and body must be interpreted from a flat image, making depth one of the most difficult aspects of computer vision.
The Challenge of Single-Camera (Monocular) Vision
AI systems that analyze a single video use what computer vision researchers call monocular vision.
These systems are remarkably capable. They can estimate body posture, identify key joints, detect the golf club, and measure many aspects of a golfer’s movement.
However, they cannot directly observe depth.
Instead, they estimate it.
For example, a single camera cannot always determine whether:
- the hands moved toward the golfer or simply across the frame,
- the hips rotated or shifted laterally,
- the club head moved closer to the camera or farther away,
- the shaft changed orientation in three-dimensional space.
Multiple different 3D movements can produce nearly identical 2D images.
This uncertainty is known as depth ambiguity, and it is one of the fundamental challenges in computer vision.
What Is Depth Ambiguity?
Depth ambiguity occurs whenever a single image cannot uniquely describe the true position of an object in three-dimensional space.
Imagine someone pointing directly toward the camera.
From one photograph, it becomes difficult to determine:
- how far the arm extends,
- how close the hand is to the camera,
- whether the elbow is bent slightly or significantly.
Several different arm positions could create almost the same image.
Golf swings present an even greater challenge.
The body rotates rapidly while the golf club travels at high speed through multiple planes of motion. Without additional viewpoints, estimating the exact position of every body segment and the club becomes increasingly difficult.

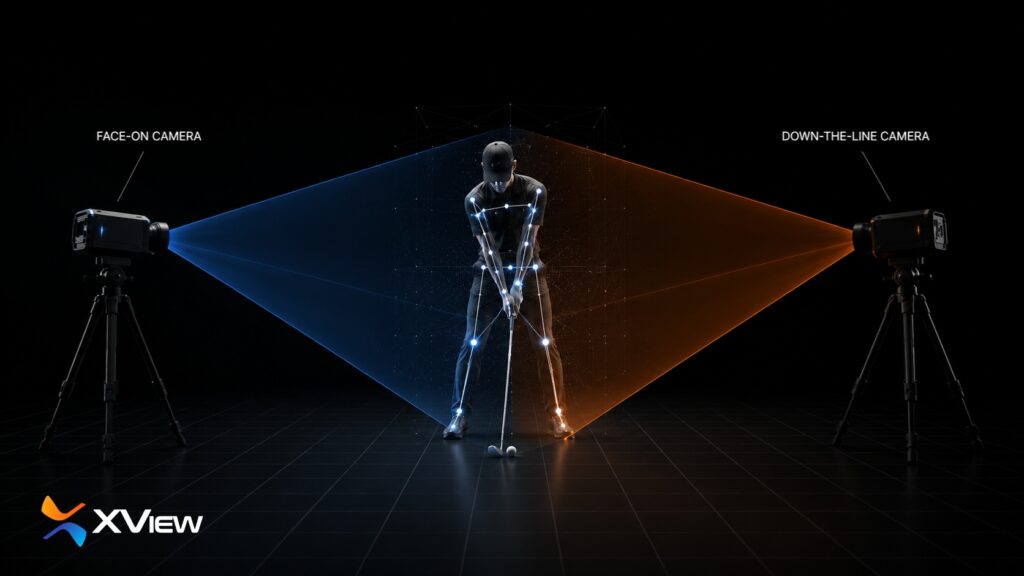

How Two Cameras Create True 3D Golf Swing Analysis
One of the most effective ways to overcome depth ambiguity is by observing the swing from multiple synchronized perspectives.
In golf, this is commonly achieved using two cameras:

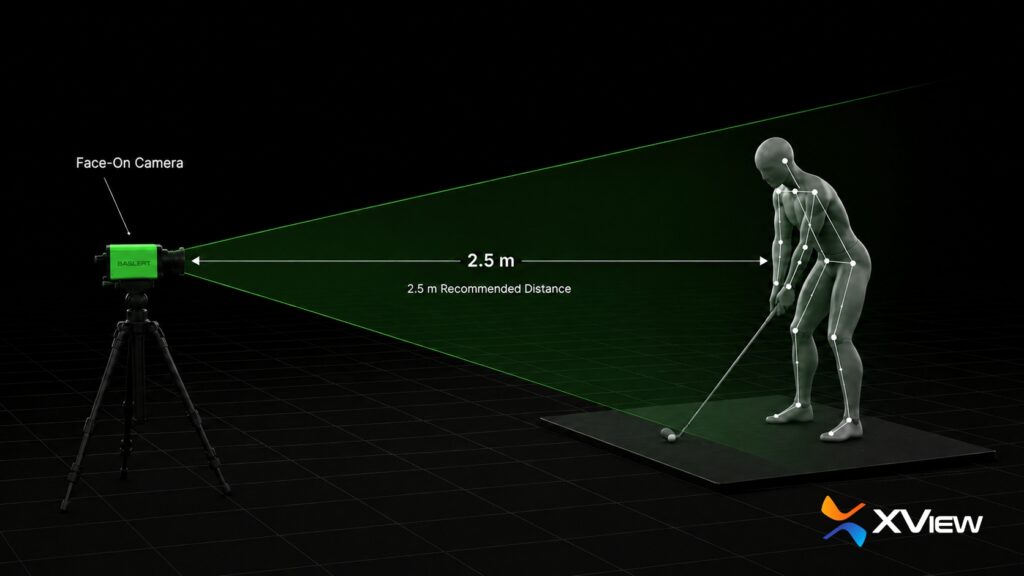

- Face-On

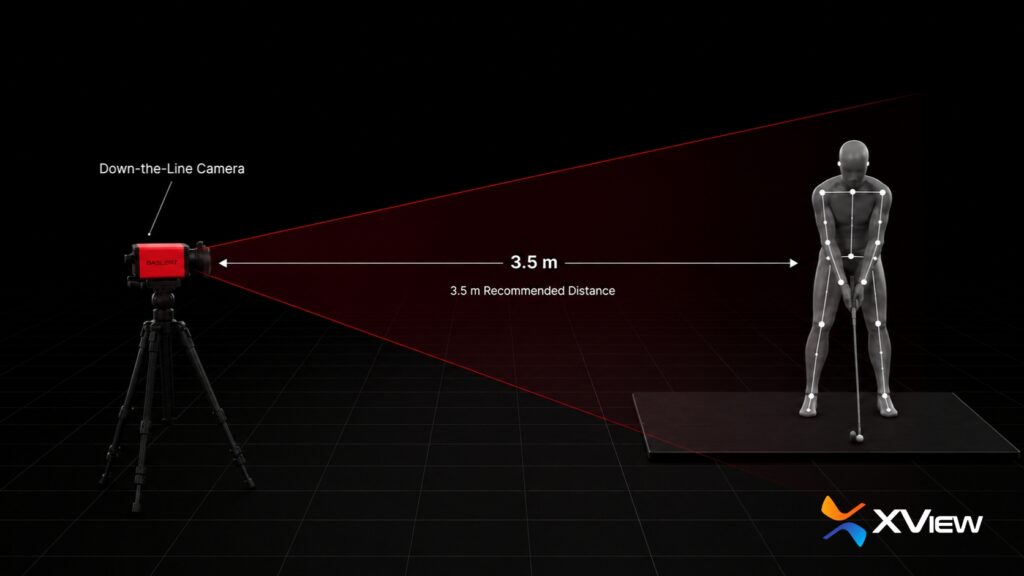

- Down-the-Line
Each camera captures information that the other cannot fully see.
Movements hidden from one perspective often become visible from the other.
By combining both synchronized views, computer vision algorithms can identify corresponding body joints and club positions in each image. Using geometric triangulation, the system calculates where those points exist in three-dimensional space.
This process is known as 3D reconstruction.
Instead of estimating depth, the system measures it using information from multiple viewpoints.
Why Accurate 3D Motion Analysis Matters
True 3D reconstruction provides a much richer understanding of how a golfer moves throughout the swing.
Rather than relying solely on visual appearance, coaches and athletes can evaluate measurable biomechanical data such as:
- Shoulder rotation
- Hip rotation
- Pelvic tilt
- Spine angle
- Weight transfer
- Club path
- Club head trajectory
- Club shaft orientation
- Hand depth
- Kinematic sequence
These measurements help explain not only what happened, but why it happened, allowing golfers to make more informed adjustments during practice.
Accuracy Versus Convenience
Single-camera golf analysis has dramatically increased the accessibility of swing analysis.
With nothing more than a smartphone, golfers can receive valuable feedback in seconds, making AI-powered coaching available to players at every skill level.
However, convenience and measurement accuracy are different objectives.
When the goal is quick feedback, a single camera often provides meaningful insights.
When the goal is high-fidelity biomechanical analysis and accurate three-dimensional reconstruction, synchronized multi-camera systems provide substantially more spatial information.
Neither approach is inherently better for every situation—the right choice depends on the level of detail required.
The Future of AI Golf Analysis
Artificial intelligence continues to advance rapidly.
Modern computer vision models are becoming increasingly capable of estimating movement from a single camera, and those capabilities will continue to improve.
At the same time, the laws of geometry remain unchanged.
The more perspectives available, the more accurately AI can reconstruct complex movement in three dimensions.
As AI, computer vision, and markerless motion capture continue to evolve, the future of golf performance analysis will increasingly combine intelligent algorithms with multiple synchronized viewpoints to deliver richer, more reliable biomechanical insights.
Golf is played in three dimensions.
Understanding the golf swing should be no different.
Single-camera AI has made professional-level swing analysis more accessible than ever before. Yet when the objective is precise 3D motion analysis, depth measurement, and detailed biomechanics, multiple synchronized camera perspectives provide information that a single viewpoint simply cannot capture.
At IdeasLab, this principle shapes how we approach Motion Intelligence. By combining advanced computer vision, markerless motion capture, and synchronized camera perspectives, we continue to explore more accurate ways to understand both golfer and club movement, helping transform video into meaningful performance insights.
XView AI is developed by IdeasLab, an AI company building markerless motion capture technology for sports, fitness, and healthcare.
